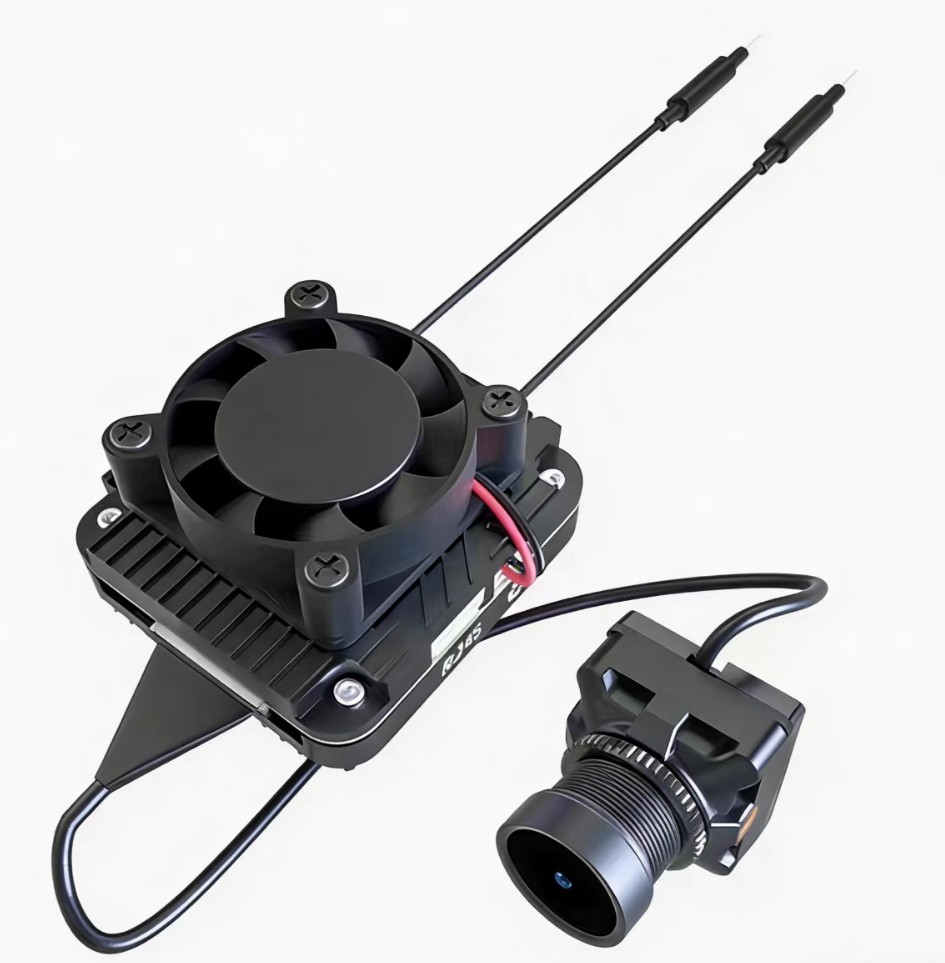

ZYRO Air
Integrated FPV Airborne Video Link
ZYRO Air is a lightweight airborne video transmission unit that combines a camera, video encoding, and wireless transmission in a compact form factor. It is designed for drones, FPV platforms, and portable real-time video backhaul applications where weight, wiring simplicity, and installation efficiency matter.
Built for your integration
A closer look.
Integrated Airborne Design
Camera, encoder, and wireless TX combined in one compact module for faster deployment and cleaner installation.
H.265 Encoding
High-efficiency compression delivers strong image quality while reducing link load and bandwidth pressure.
4K30 & 1080P90
Supports up to 3840×2160 @ 30fps and high-framerate 1920×1080 @ 90fps modes for FPV operation.
170° Ultra-Wide FOV
2.1 mm lens with 170° field of view for immersive FPV and low-altitude observation.
Flexible Power Input
Supports 2S–6S input and integrates easily with common airborne power systems.
Optimized Antenna Layout
Dual tail-antenna arrangement helps reduce mutual interference during installation.
Integrated digital air unit
One compact air unit.
Technical Data
Technical Specifications
| Parameter | Value |
|---|---|
| Mounting size | 30 × 30 × 14 mm |
| Camera size | 19 × 19 mm |
| Total weight | Approx. 30 g |
| Power consumption | 10 W |
| Input voltage | 2S–6S |
| Operating frequency | 5.18–5.845 GHz |
| Transmit power | 29 dBm |
| Image sensor | Sony IMX415, up to 3840 × 2160 |
| Encoding | H.265 (default) |
| Video modes | 1920 × 1080 @ 90fps to 3840 × 2160 @ 30fps |
| Lens | 2.1 mm, 170° ultra-wide, for 1/2.8-inch image sensor |
Recording and video modes depend on the selected configuration. Confirm receiver and display output support for your intended resolution.
Typical Applications
Where ZYRO Air Excels
FPV drones and lightweight airborne platforms
Portable real-time video transmission systems
Compact integrated payloads requiring low wiring complexity
Installation Notes
▸Keep the two tail antennas separated to reduce mutual interference. ▸Angle the antennas upward when possible and avoid airframe or battery blockage. ▸Recommended settings: Channel 60 and H.265 codec. ▸APP installation information is available from after-sales support.Product resources
